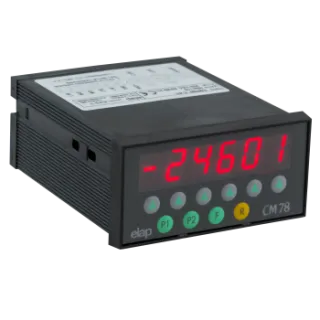

CM78

Add to inquiry

download

Key Features

6 displayed digits or 5 digits with minus sign
2 preset values
Supply voltage: 115 or 230 or 24 Vac, 50/60 Hz or 24 Vdc
ON/OFF output
Count input for NPN open collector signals
40 KHz direct count max frequency
2 normally-open relay outputs, 3 A max I, 220 V max V, 50 Hz
2 auxiliary inputs
Operational modes freely settable by the user: decimal digits, correcting factor of the input pulses
Serial interface RS232 (optional)
Data storage at turning off on EEPROM
Removable terminal box connections
Front dimension; 48 x 96 mm; depth 105 mm
Possibility to develop customers software
