POWER RING FILM CAPACITOR – DC LINK CAPACITORS

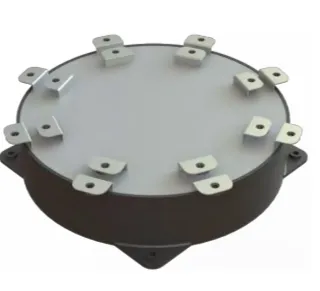

Power Ring Film Capacitor patented technology offers industry-leading power density and ESL/ESR performance in a compact package. These products are designed for long-term exposure to elevated temperatures, continuous thermal cycles, and transportation vibration.
Add to inquiry
download
DC Volt (Vdc) CAP. (μF) Standard Part # Nominal Case Outside Diameter Nominal Overall Height RMS Current at 85°C
450 500 700D529 (pdf) 4.57″ (116.1 mm) 2.04″ (51.8 mm) 115
450 800 700D600 (pdf) 6.27″ (159.3 mm) 2.16″ (54.9 mm) 225
450 1,600 700D601 (pdf) 8.47″ (215.2 mm) 2.16″ (54.9 mm) 400
600 500 700D652* (pdf) 6.27″ (159.3 mm) 2.05″ 210
600 500 700D349 (pdf) 6.27″ (159.3 mm) 2.16″ (54.9mm) 210
600 1,000 8.47″ (215.2 mm) 2.16″ (54.9mm) 400
600 1,500 700D523 (pdf) 10.52″ (267.2 mm) 2.16″ (54.9 mm) 460
700 500 700D717* (pdf) 6.27″ (159.3 mm) 2.05″ (52.1 mm) 175
700 500 700D599 (pdf) 6.27″ (159.3 mm) 2.16″ (54.9mm) 175
700 1,000 700D547 (pdf) 8.47″ (215.2 mm) 2.16″ (54.9mm) 300
900 215 700D651* (pdf) 6.27″ (159.3 mm) 2.05″ (52.1 mm) 175
900 215 700D406 (pdf) 6.27″ (159.3 mm) 2.16″ (54.9 mm) 175
900 425 700D407 (pdf) 8.47″ (215.2 mm) 2.16″ (54.9 mm) 285
900 1,000 700D525 (pdf) 10.0″ (254 mm) 2.72″ (69.1 mm) 300
900 1,500 700D509 (pdf) 12.33″ (313.2 mm) 2.82″ (71.7 mm) 380
1,100 1,000 700D628 (pdf) 10.0″ (254 mm) 2.72″ (69.1 mm) 235
1,100 1,500 700D590 (pdf) 12.33″ (313.2 mm) 2.82″ (71.7 mm) 300
1,200 115 700D718* (pdf) 6.27″ (159.3 mm) 2.05″ (52.1 mm) 155
1,200 115 700D408 (pdf) 6.27″ (159.3 mm) 2.16″ (54.9 mm) 155
1,200 225 700D409 (pdf) 8.47″ (215.2 mm) 2.16″ (54.9 mm) 265
1300 1,000 700D643 (pdf) 12.33″ (313.2 mm) 2.82″ (71.7 mm) 300
1,500 75 700D719* (pdf) 6.27″ (159.3 mm) 2.05″ (52.1 mm) 140
1,500 75 700D410 (pdf) 6.27″ (159.3 mm) 2.16″ (54.9 mm) 140
1,500 140 700D411 (pdf) 8.47″ (215.2 mm) 2.16″ (54.9 mm) 250
