 Products Sensors Miniature Sensors Load Washer

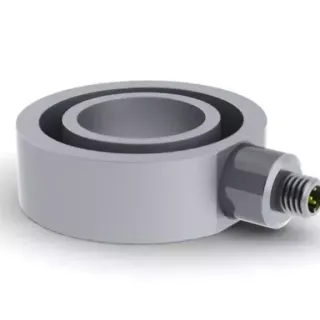

  • teaser_1.2.7.1_hermetic_load_washer.png
Hitec

Load Washer

The Load cell is a stainless steel sub-miniature strain gauge based transducer with compensated temperature performance. This type provides measurements up to 20000 lbf with better than ±0.5% (full scale) non-linearity.

Available options include IP68 hermetic sealing.

Model number: ALW
Add to inquiry
download
Capacity 5 lbf - 2k lbf
Rated Output (RO) 0.2mV/V (5lb), 0.4mV/V (10lb), 1mV/V (25lb); 2mV/V (50-20000lb) nom.
Non-linearity ±0.5% of RO
Hysteresis ±0.5% of RO
Repeatability ±0.1% of RO
Zero balance ±2% of RO
Temp Shift Zero ±0.005% of RO/°F (±0.01 of RO/°C)
Temp Shift Span ±0.005% of LOAD/°F (±0.01 of LOAD/°C)
Compensated Temp Range 5 to 160 °F (-15 to 71 °C)
Operating Temp Range -60 to 200 °F (-51 to 93 °C)
IP Rating IP64
Bridge resistance 700 Ohms nom.
Excitation 5V recommended, 10V Max
Calibration (STD) 5 pt. Compression
Safe overload 150% of RO
Material Stainless Steel
