 Products Sensors Torque Sensors Flange to Flange Reaction Torque Sensor
  • teaser_1.3.2.4-flange-to-flange-reaction-torque-sensor-01165-01171-edit.png
Hitec

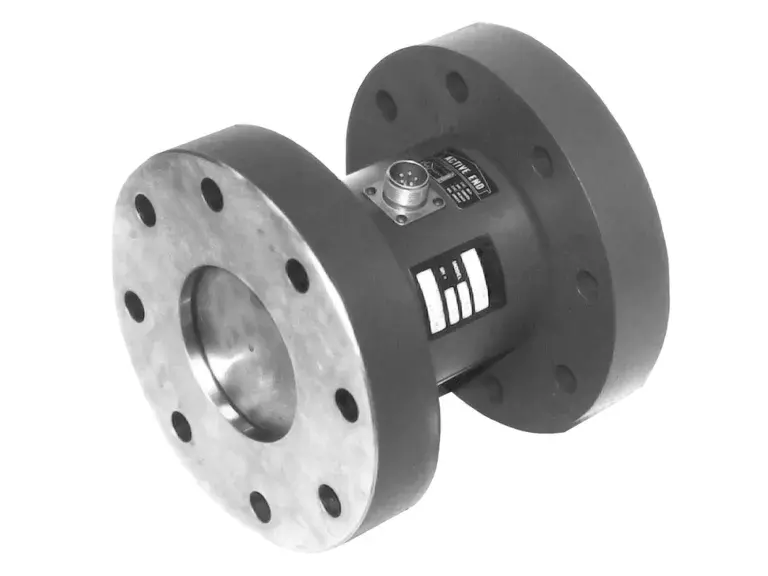

Flange to Flange Reaction Torque Sensor

Because non-accelerating systems must have equal reactions to actions produced, it is often possible to measure output torque by measuring reaction forces acting on the device’s housing. This sensor is ideal for measuring reaction or restraining torque in motor, pump, and fixture mounts. These hollow sensors are well suited for limited rotation applications.

Model number: 01165, 01166, 01167, 01168, 01169, 01170, 01171
Add to inquiry
download
Capacity 50 to 200,000 in.lb. (See chart)
Overload capacity 150% of F.S.
Output at F.S. 2.0 mV/V nominal
Non-linearity 0.10% of F.S.
Hysteresis 0.10% of F.S.
Zero balance 1.00% of F.S.
Compensated temperature 70 to 170°F
Useable temperature -65 to +250°F
Temperature effect on zero 0.002% of F.S./°F
Temperature effect on span 0.002% of Rdg./°F
Bridge resistance 700/350 Ohms
Excitation voltage, maximum 20 Vdc
