0703-1603-99
Fredericks

0703-1603-99

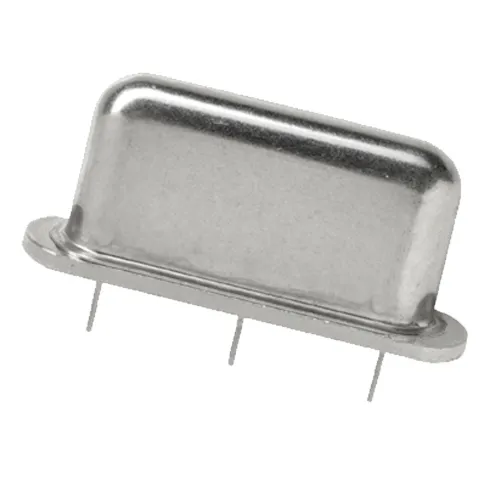

The 0703-1603-99 electrolytic tilt sensor (also sometimes called an electronic tilt sensor) offers mid-range angle measurement up to ±25° with repeatability of ±0.005° in one axis (single-axis measurement). This sensor is the tabless (no mounting holes) version of the 0703-1602-99 tilt sensor. The tabless design reduces the mechanical footprint, allowing it to mount directly on certain Fredericks signal conditioners like our 1-6200-012, without the need for external wires. The 0703-1603-99 is an industrial-grade, all-metal, and hermetically sealed sensor design for use in the most extreme environments. This tilt sensor has better accuracy than our 0717 series tilt sensors, and it is a lower cost alternative to our glass electrolytic tilt sensors.
Add to inquiry
download
Operating Range ±25°
Linear Range ±10°
Axes of Measurement 1
Linearity (±10°) ≤1%
Repeatability ±0.005°
Resolution (with 16-bit ADC) ≤0.001°
Null Offset ±2°
Long Term Stability/Drift ≤0.005°
Null Temperature Coefficient ≤0.0002°
Scale Temperature Coefficient 0.075% per °C
Operating Temperature -40 °C to 85 °C
Storage Temperature -55 °C to 125 °C
Null Impedance 50 kΩ
Time Constant (63.2% of final output) ≤1 s
Materials Contains magnetic metals
Maximum Current at Null 0.2 mA (continuous)
