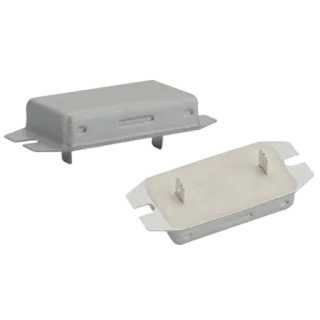

XV2 Series

The XV2 series is a 40W to 70W automotive-grade high-power resistor, specifically designed for electric vehicles (EV), hybrid electric vehicles (HEV), plug-in hybrid electric vehicles (PHEV), and high-voltage electronic applications. Its sleek, thin blade-style housing with 6.3mm blade terminals ensures easy installation while providing excellent heat dissipation. At the same time, the XV2 utilizes non-inductive winding technology, effectively minimizing inductance and improving the reliability and stability of the circuit.

Add to inquiry

download

Key Features
Applications
Specifications

High Power Handling: Offers rated power from 40W to 70W, suitable for high-load applications
Wide Resistance Range: Supports 10Ω to 250Ω, meeting various application requirements
High Precision and Low Tolerance: Resistance tolerance range from ±0.5% to ±10%, ensuring stability and accuracy
High Voltage Design: Operates up to 850V DC, suitable for high-voltage electric vehicle systems
Excellent Temperature Tolerance: Operating temperature range from -55°C to +200°C, capable of withstanding harsh environments
Compact and Lightweight Design: Aluminum housing enhances heat dissipation and saves space
Non-Inductive Winding Technology: Reduces inductance influence, improving circuit stability
Quick Connect Terminals: 6.3mm blade terminal design for easy installation and replacement

🚗 Electric Vehicle Applications

High-Voltage Cable Systems – Ensures the safety and stability of EV, HEV, and PHEV high-voltage circuits
Battery Management System (BMS) – Helps monitor and balance battery modules, improving energy efficiency
Electric Motor and Drive Control – Involved in current sensing and power regulation, enhancing motor efficiency
DC/DC Converters & Inverters – Provides stable voltage division and power regulation functions
Charging Systems and Safety Protection Circuits – Ensures safe charging processes, preventing overcurrent and overheating

⚡ Industrial and Power Applications

High-Voltage Power Supply & Power Electronics – Provides precise current monitoring and power control
Renewable Energy Systems (Solar/Wind) – Inverters and power management applications
Power Grid and Energy Metering Systems – Provides reliable resistance measurements for power transmission and distribution

Parameter	Specification
Resistance Range	10Ω to 250Ω
Resistance Tolerance	±0.5% to ±10%
Rated Power	40W to 70W
Operating Voltage	850VDC
Technology	Metal Wirewound
Package Type	Compact Metal Housing, Intrinsically Safe
Operating Temperature Range	-55°C to +200°C
TCR (Temperature Coefficient of Resistance)	260ppm/°C
Terminal Type	6.3mm Blade Terminal
